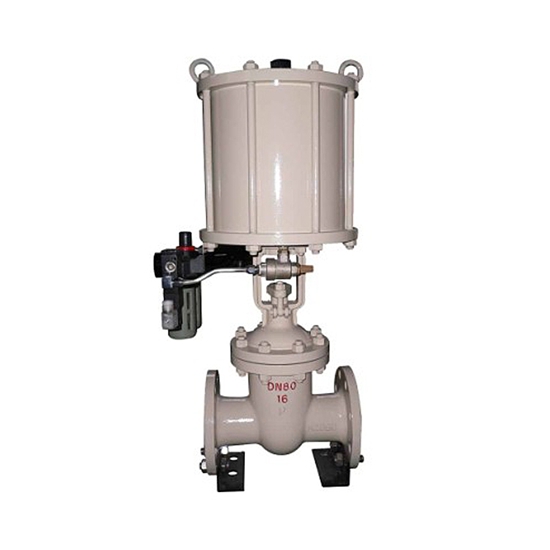

當前位置：首頁 >> >>Gate Valve SeriesZ641H pneumatic valve characteristics:
The actuator 1 pneumatic valve has the positive, reverse two kinds of functions, open, close the valve open, gas gas off in two ways. Gate valve with metal contact unique structure, reliable action, has cut a very high performance, superior than the conventional cut-off valve. Allowable leakage rate up to 10-8 * KV. The use of a wide range, temperature from -196 ℃ to 500 ℃, diameter up to 40mm, to 600mm. seat with parallel, 60 ° V and 90 ° V incision incision three, adapt to different use occasions.
Heat 2 body available jacket forms, with medium cooling after blockage, using condensation or coking.
Z641H pneumatic valve material selection:
1 the valve body, valve cover: ZG230-450 valve plate: 1Cr18Ni9Ti division Chatterley alloy welding rod: 1Cr18Ni9Ti gate: 1Cr18Ni9Ti division Chatterley alloy welding cylinder: seamless steel pipe: aluminum alloy piston ring: oil resistant O rubber
2 packing: PTFE, flexible graphite
The main technical parameters of Z641H gas valve:
| Nominal diameter of DN(mm) | 40 | 50 | 80 | 100 | 125 | 150 | 200 | 250 | 300 | 350 | 400 | 450 | 500 | 600 | |||
| The rated flow coefficientKV | 170 | 270 | 510 | 940 | 1400 | 2200 | 3500 | 8500 | 9600 | 13000 | 17000 | 55000 | 27000 | 38000 | |||
| Nominal pressure PN(MPa) | 1.66.4 | ||||||||||||||||
| Piston diameter D(mm) | 120 | 160 | 280 | 360 | 420 | 540 | |||||||||||
| Operating pressure P(MPa) | 0.3~0.5 | ||||||||||||||||
| Medium temperature t(℃) | Standard：-20~250; High temperature：250~500; Low temperature：-196~-20 | ||||||||||||||||
| Allowable leakage | 10-8×KV | ||||||||||||||||
| Flow characteristics | The linear approximation | ||||||||||||||||
| Action mode | To continue, continuous (valve positioner) | ||||||||||||||||
